HẠT HÚT ẨM BASF F200 3/16


Model: F200 3/16
Giá: Liên hệ

Đặt hàng
 Đặt hàng với chúng tôi

Qúy khách vui lòng điền đầy đủ thông tin để chúng tôi có thể hỗ trợ sớm nhất cho quý khách!

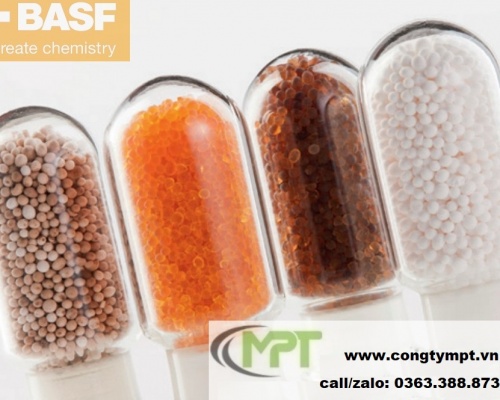

HẠT HÚT ẨM BASF (ACTIVATED ALUMINA)
Hãng sản xuất: BASF
Xuất xứ: USA
Model: F-200
Kích thước: 1/8"(3.2mm), 3/16"(4.7mm), 1/4" (6.4mm)
Đóng gói: 22.7kg/1 bao, 907kg/1 túi
Nhiệt độ điểm sương: -40 oC,  -70 oC
Ứng dụng: Máy sấy khí kiểu hấp thụ (desiccant air dryer)

HẠT HÚT ẨM BASF F200/USA

(DÙNG CHO MÁY SẤY KHÍ KIỂU HẤP THỤ)

Activated Alumina for Liquid and Gas Drying
BASF F-200 is a smooth sphere of activated alumina
produced by BASF’s unique manufacturing process. F-200 is an excellent desiccant for drying a wide variety of liquids and gases. Although all molecules are adsorbed to some extent on F-200 activated alumina, those molecules having the highest polarity are preferentially absorbed. Stream conditions such as pressure, concentration and molecular weight of the molecules, temperature and site competing molecules affect the efficiency of adsorption. F-200 is available in nominal sizes of 1/16", 1/8", 3/16" and 1/4" spheres.

Product Benefits
1. Uniform ball size

This property is especially useful in
high pressure gas dehydration where
minimizing pressure drop is important. The uniform size and sphericity of BASF F-200 prevents adsorbent segregation during pneumatic loading, thus minimizing channeling and yielding more efficient use of the entire desiccant tower.

2. High crush strength
BASF F-200 has high crush strength
which allows rapid pneumatic loading
of towers. The high crush strength also allows use of taller towers that make more efficient use of the desiccant. BASF F-200 activated alumina is highly resistant to amine attack. Furthermore, BASF F-200’s high crush strength enables it to dehydrate acid containing gases and liquids, such as CO2, for a longer operating life.

3. Low abrasion
The low abrasion of BASF F-200
ensures less dusting during transport, loading, and service life which reduces pressure drop and minimizes downstream valve and filter plugging, common with dustier products.

4. High adsorptive capacity
BASF F-200’s high surface area and tailored pore distribution provide a high dynamic H2O adsorption capacity. With proper tower design and effective regeneration, F-200 can achieve an ultra low H2O effluent specification (i.e. dew point). BASF F-200 also has excellent cyclic stability that yields a long life.
Available Packaging
• 50 lb bags
• 375 lbs steel drums
• 2000 lb super sacks

Product Applications
1. Drying

Nearly all gases and liquids can be dried with
F-200. Water removal is often necessary for efficient processing, storage and transportation of fluids. The 3/16" size is normally recommended for vapor phase dehydration
applications where pressure drop minimization yet high H2O adsorptive capacity is desired. The 1/8" and 7 x 14 Tyler mesh sizes are recommended for use in liquid dehydration and other mass transfer limited adsorption
applications.
BASF F-200 activated alumina is the industry standard for drying compressed air. Providing long service life with performance at or below dew point specifications, F-200 is a ‘peace of mind’ product for both large and small dryers. BASF F-200 is appropriate for use in dehydrating gases in both thermally regenerative (350 to 600°F) and pressure swing (PSA) modes.

2. Acid removal
Transformer oils, lubricating oils, and refrigerants form degradation acids upon use. BASF F-200 will remove these acids during use. In the manufacture of chlorinated and/or fluorinated hydrocarbons, removal of these residual halides and water is essential for a non-corrosive product.
3. Process stream purification
BASF F-200 is excellent for removal of highly polar compounds such as water and alcohol. It also readily adsorbs TBC and heavy metal ions from hydrocarbons.
4. Hydrocarbon adsorption
Under proper operating conditions, the pore size
distributions and surface chemistry of activated aluminas are conducive to the adsorption of hydrocarbons.

Để biết thêm thông tin chi tiết về sản phẩm: Catalogue, Hình ảnh, giá và tồn kho
Vui lòng liên hệ:
Công ty TNHH Máy và Thiết Bị Khí Nén MPT
Hotline/ Zalo (Mrtam): 0919243248
Email: tam.hoang@congtympt.com
Website: www.congtympt.com
